Antec Cx500 M Micro Atx | Itx Argb Mini Tower Gaming Chassis Type C Black

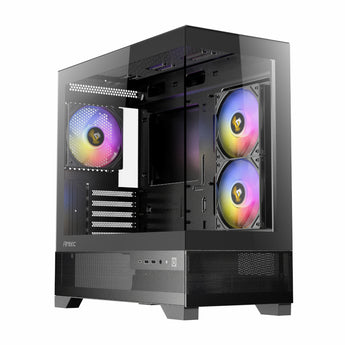

Introducing the Antec CX500M Gaming Chassis, which is designed for gamers who want both style and performance. Its panoramic design provides a sleek, transparent appearance that highlights your hardware beautifully. The tool-free glass side and front panels feature a clip design for easy and safe installation, while the bottom mesh exterior improves cooling efficiency and prevents heat buildup. The CX500M allows for up to 9 fans and a 360mm water cooling radiator on top, ensuring rapid heat dissipation and optimal performance.

The CX500M has a 5-slot PCIe design that improves graphics card compatibility and provides more cooling space, reducing the risk of overheating. Additional features include a removable hard drive cage, magnetic top and bottom dust filters for clean air intake, and a Type-C 3.2 Gen 2 port for fast data transfer. It includes two 120mm reverse blade fans on the sides and one 120mm fan in the back, which are pre-connected for easy setup. Enhance your gaming experience with the Antec CX500M Gaming Chassis.

FEATURES:

• Panoramic 270° design for a transparent and sleek look.


• Tool-free glass side and front panels with a clip design for easy and safe installation.


• Vertical airflow supports up to 9 fans, speeding up heat dissipation.


• Includes a Type-C 3.2 Gen 2 port for high-speed data transfer.


• Top and Bottom Magnetic Dust Filters

SPECIFICATIONS:

• Form Factor: Mini Tower


• Materials: Steel + Glass


• Mainboard Support: Micro-ATX , ITX


• Front Access & Controls: Power, LED On/Off , USB3.0 x 2 , Type-C 3.2 Gen 2 x 1, Headphone/Mic Combo Jack


• Side Panel: Tempered Glass


• Drive Bays:



  • 3.5"/2.5": 2/1


  • 2.5": 1






• Expansion Slots: 5


• Fan Support:



  • Top: 3 x 120mm/2 x 140mm


  • Side: 2 x 120mm


  • Power Supply Shroud: 3 x 120mm


  • Rear: 1 x 120mm






• Included Fan(s):



  • 2 x 120mm fixed mode RGB reverse fans on right side


  • 1 x 120mm fixed mode RGB fan in rear






• Radiator Support:



  • Top: 120/140/240/280/360mm






• Clearance:



  • Max GPU Length: ≤415mm


  • Max CPU Cooler Height: ≤165mm


  • Max PSU Length: ≤210mm (With HDD), ≤270mm (Without HDD)


  • Cable Routing Space: ≤ 23mm






• Dust Filter: Top / Bottom


• Colour: Black


• Product Dimensions: 43.6 x 21 x 44.6 cm


• Product Weight: 6340g

WHAT’S IN THE BOX:

• Antec CX500M Micro-ATX | ITX ARGB Mini-Tower Gaming Chassis – Black x1
