Asus Prime Ge Force Rtx 5080 16 Gb Oc Edition Gddr7 Graphics Card

Experience next-generation power and precision with the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card, expertly engineered for elite gamers and creative professionals. Built on NVIDIA’s latest architecture, this premium GPU delivers outstanding AI acceleration, exceptional thermal performance, and cutting-edge display capabilities, all housed in a compact, SFF-Ready 2.5-slot design for maximum build compatibility.

Equipped with 16GB of ultra-fast GDDR7 video memory and a robust 256-bit memory interface, the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card runs at memory speeds of up to 30 Gbps. With a GPU boost clock of up to 2685 MHz in OC mode and 10752 CUDA cores, it offers uncompromising speed for 4K gaming, real-time ray tracing, and high-throughput content rendering. Supporting PCIe 5.0 and OpenGL 4.6, this card ensures optimal performance across modern platforms and software environments.

AI performance is at the forefront, delivering up to 1827 TOPs, enhanced further with NVIDIA DLSS 4 and fifth-gen Tensor Cores for real-time frame generation and AI-powered graphics enhancement. The card supports a maximum digital resolution of 7680 x 4320 and accommodates up to four simultaneous displays via one native HDMI 2.1b and three DisplayPort 2.1b outputs. HDCP 2.3 support is included for protected content playback.

Thermal management is handled by triple Axial-tech fans with dual-ball bearings for extended durability, backed by a vapour chamber, vented backplate, and MaxContact technology for superior heat transfer. Silent operation is achieved with 0dB technology, while Dual BIOS allows users to select between Quiet and Performance modes based on their workload.

The ASUS Prime GeForce RTX 5080 OC Edition Graphics Card includes essential accessories such as a Velcro hook & loop, adapter cable, and Speedsetup manual. Supported by ASUS GPU Tweak III, MuseTree, and the latest Game Ready and Studio Drivers, it is an ideal choice for users who demand high-performance computing in a compact footprint.

Build small. Play big. Create without limits. Choose the ASUS Prime GeForce RTX 5080 OC Edition Graphics Card for ultimate power, reliability, and creative freedom.

FEATURES:

• Powered by NVIDIA® GeForce RTX™ 5080 with 16GB GDDR7 for next-gen gaming and content creation


• SFF-Ready 2.5-slot design ensures wide compatibility with compact, high-performance PC builds


• Fifth-gen Tensor Cores and DLSS 4 enable AI-enhanced graphics and ultra-realistic visuals


• Fourth-gen Ray Tracing Cores deliver true-to-life lighting and cinematic rendering


• Triple Axial-tech fans with dual-ball bearings for improved airflow and extended durability


• Vapour chamber and vented backplate maximise thermal efficiency under heavy workloads


• MaxContact GPU cooling increases heat transfer surface by 5% for lower core temperatures


• 0dB technology enables silent operation during low-load tasks and light gaming


• Dual BIOS switch offers instant toggling between Performance and Quiet operating modes

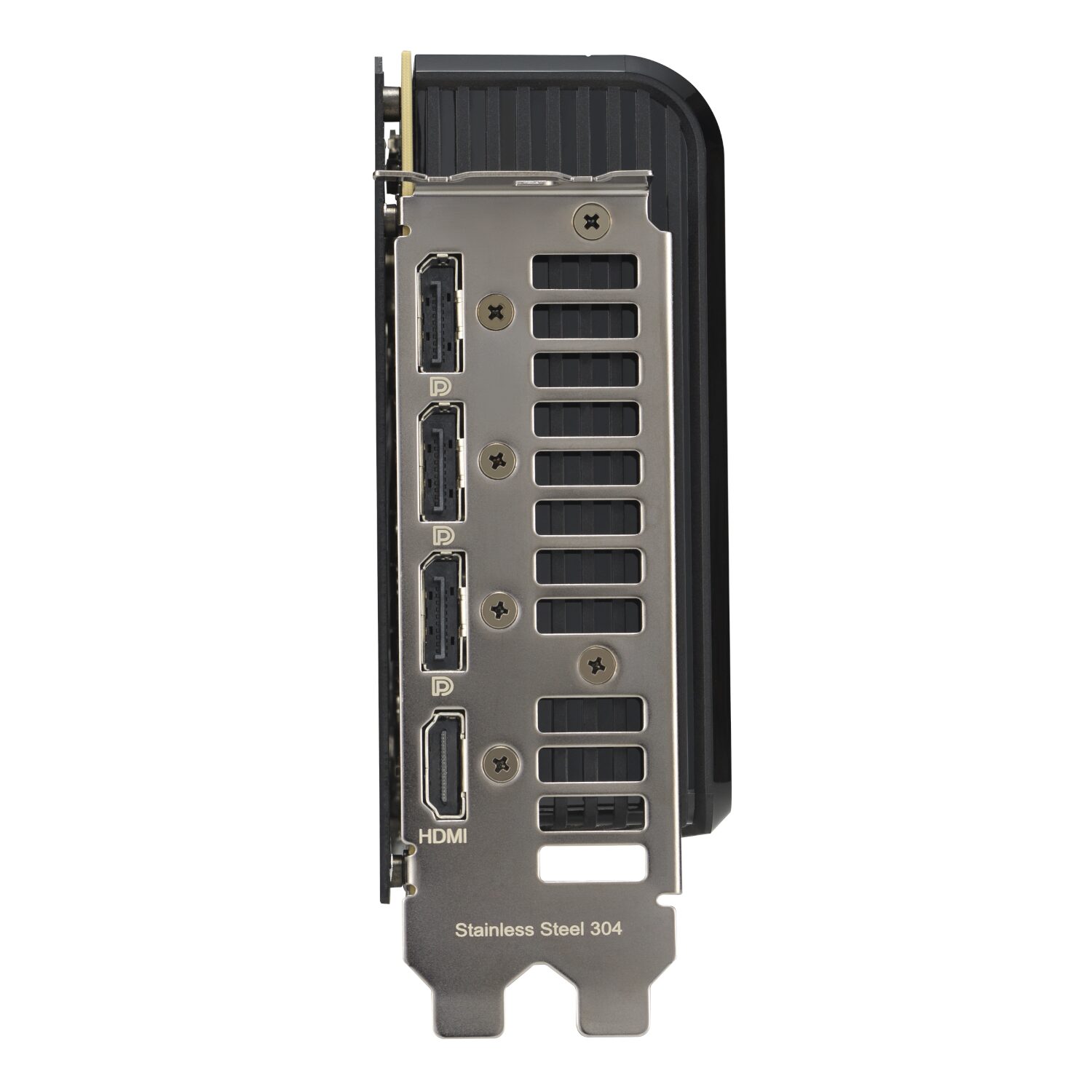

• Supports up to four displays via HDMI 2.1b and DisplayPort 2.1b with 8K resolution output


• ASUS GPU Tweak III and MuseTree software for advanced tuning and AI-driven creative tools


• Backed by premium materials, including a stainless-steel bracket and reinforced protective backplate

SPECIFICATIONS:

• Graphic Engine: NVIDIA® GeForce RTX™ 5080


• AI Performance: 1827 TOPs


• Bus Standard: PCI Express 5.0


• OpenGL: OpenGL®4.6


• Video Memory: 16GB GDDR7


• Engine Clock:



  • OC mode: 2685 MHz


  • Default mode: 2655 MHz (Boost Clock)






• CUDA Core: 10752


• Memory Speed: 30 Gbps


• Memory Interface: 256-bit


• Resolution: Digital Max Resolution 7680 x 4320


• Interface:



  • Yes x 1 (Native HDMI 2.1b)


  • Yes x 3 (Native DisplayPort 2.1b)


  • HDCP Support Yes (2.3)






• Maximum Display Support: 4


• NVlink/ Crossfire Support: No


• Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver


• Dimensions: 30.4 x 12.6 x 5 cm


• Recommended PSU: 850W


• Power Connectors: 1 x 16-pin


• Slot: 2.5 Slot


• SFF Ready: Compatible

WHAT'S IN THE BOX:

• ASUS PRIME GeForce RTX 5080 16GB OC Edition GDDR7 Graphics Card x1


• Speedsetup Manual x1


• ASUS Velcro Hook & Loop x1


• Thank You Card x1


• Adapter Cable (1 to 3) x1​
