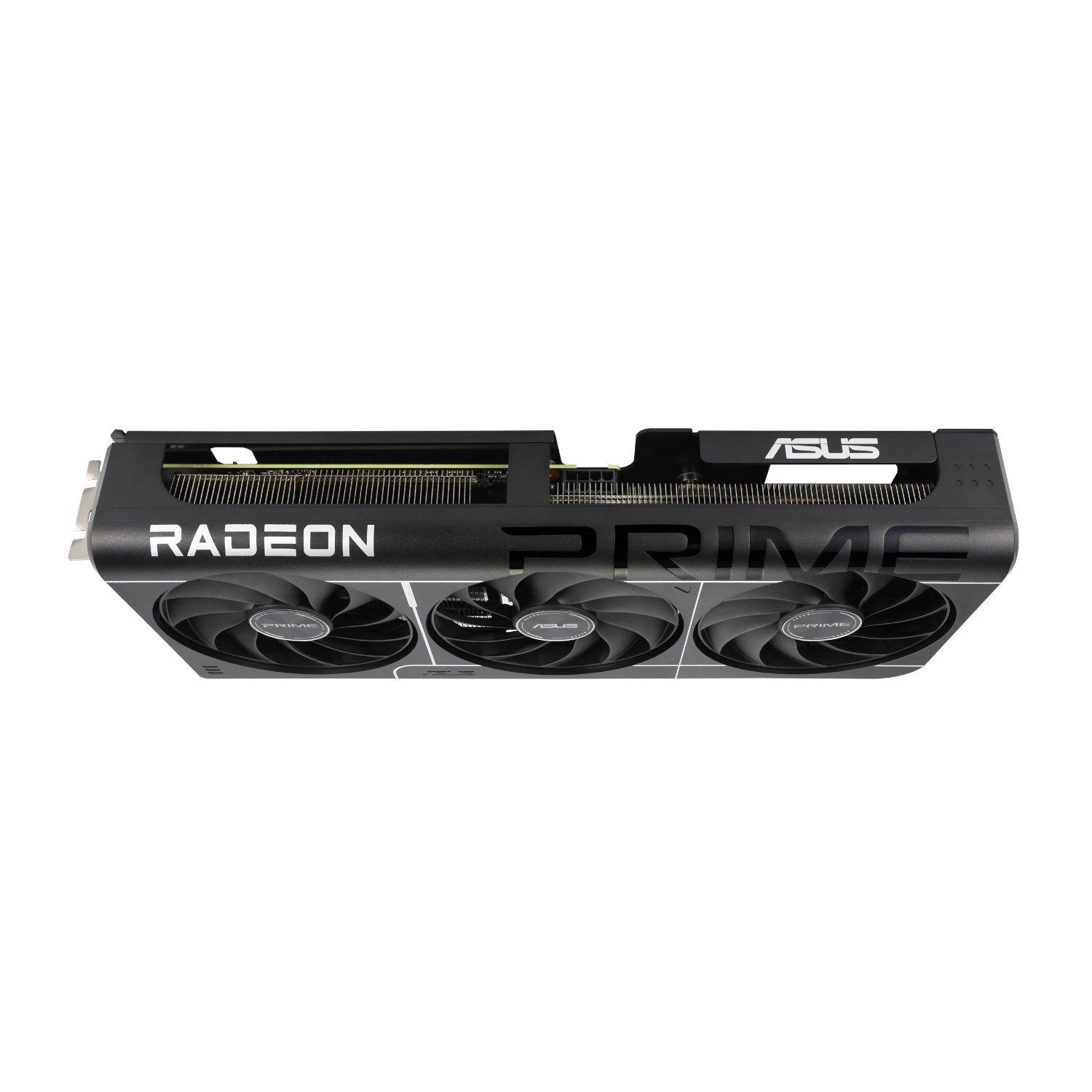

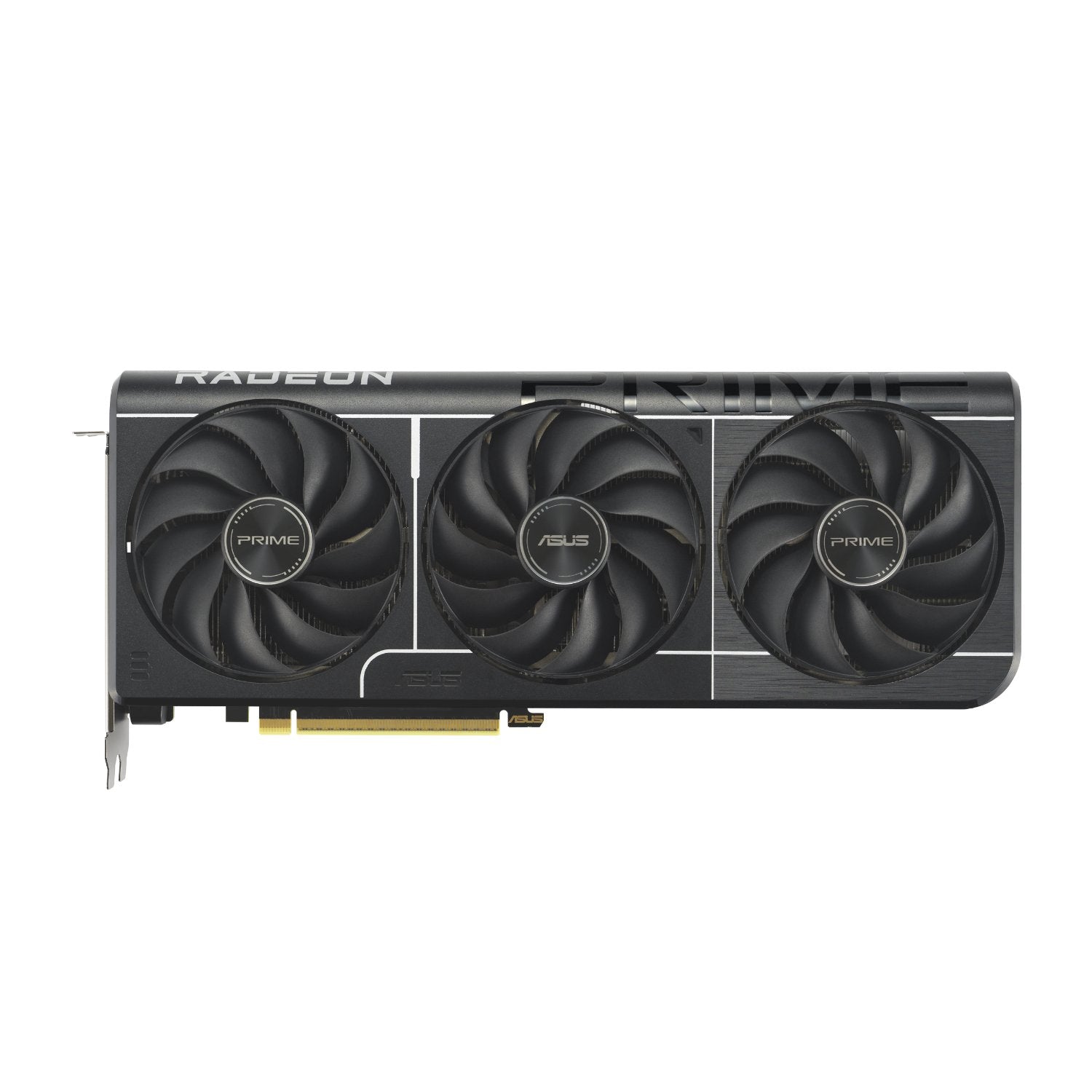

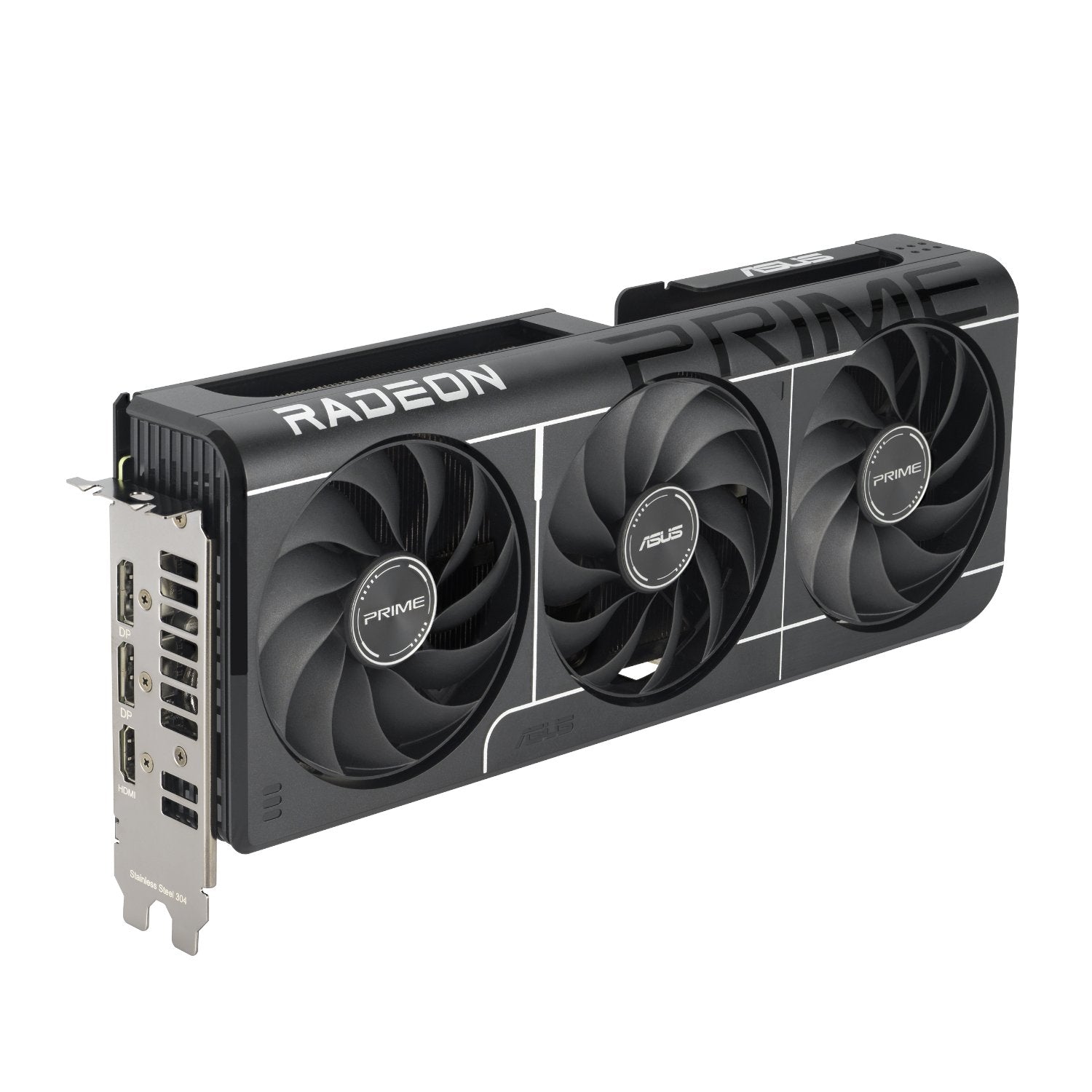

Asus Prime Radeon Rx 9060 Xt Oc 16 Gb Gddr6 Graphics Card (Rdna™ 4, Pc Ie 5.0)

Unlock cutting-edge performance with the ASUS Prime Radeon™ RX 9060 XT OC 16GB GDDR6 Graphics Card, meticulously engineered for gamers and creators demanding power, stability, and flexibility. Powered by the advanced RDNA™ 4 architecture and boasting 2048 stream processors, this GPU delivers ultra-fast WQHD gaming, accelerated creative workloads, and exceptional multi-tasking capabilities. With 16GB of high-speed GDDR6 VRAM on a PCIe 5.0 interface, you get the bandwidth and memory headroom necessary for the next generation of games and high-resolution content production.

Designed to deliver supreme thermal performance in a compact 2.5-slot form factor, the RX 9060 XT is equipped with three Axial-tech fans, optimized by a carefully engineered shroud and heatsink layout. This setup leverages side-panel ventilation to keep the card cool even under demanding loads. The 0dB fan technology ensures silent operation during light tasks by stopping all fans below 55°C and resuming intelligently at higher temperatures. MaxContact heat spreader technology and an expansive heatsink improve thermal transfer, while a vented backplate further boosts heat dissipation for sustained performance.

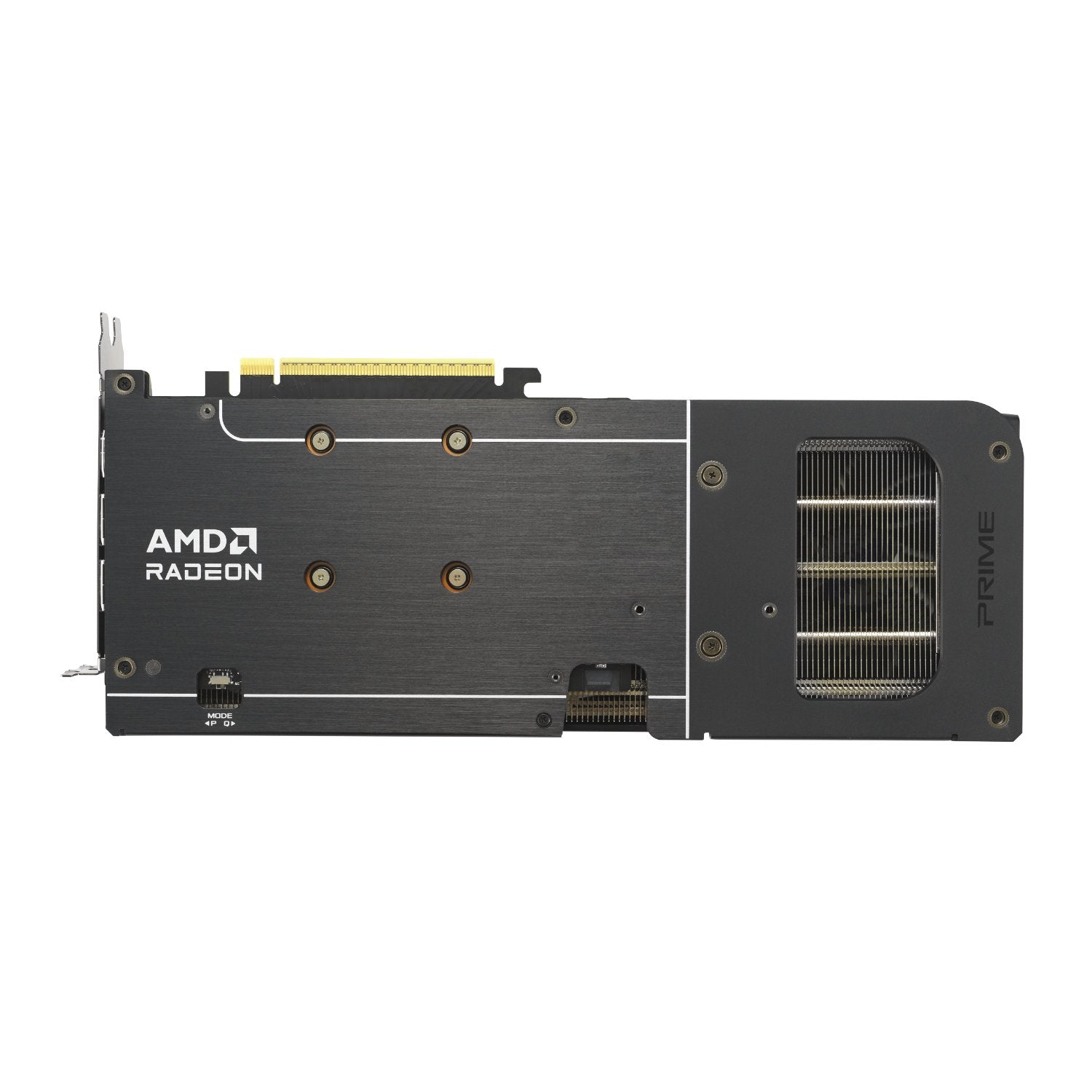

Built to last, this GPU features dual-ball bearing fans for extended reliability and an ultra-durable stainless steel mounting bracket for increased structural rigidity. ASUS’s renowned Auto-Extreme manufacturing process reduces thermal stress, improves build precision, and minimizes environmental impact—all contributing to a robust and dependable product. The reinforced PCB, protected by GPU Guard and a rigid backplate, ensures durability and safeguards against flex or trace damage during installation and prolonged use.

The RX 9060 XT also offers smart flexibility with a dual BIOS switch, letting you toggle between high-performance and quiet operating modes instantly to match your preference. With native HDMI 2.1b and dual DisplayPort 2.1a outputs, support for up to three displays, and a max digital resolution of 7680 x 4320, this GPU is ready for ultra-high-definition workflows. Whether you’re building a sleek gaming rig or a professional editing station, the ASUS Prime RX 9060 XT OC blends raw power with refined cooling and build quality, all backed by the intuitive ASUS GPU Tweak III software for easy customisation and monitoring.

FEATURES

• UP to 2760MHz in Default Mode and up to 3330MHz in OC Mode (GPU Tweak III)


• RDNA™ 4 architecture with 2048 stream processors for ultra-fast WQHD gaming and creative workloads


• 16GB GDDR6 VRAM and PCIe 5.0 bandwidth for high-speed data throughput and next-gen performance

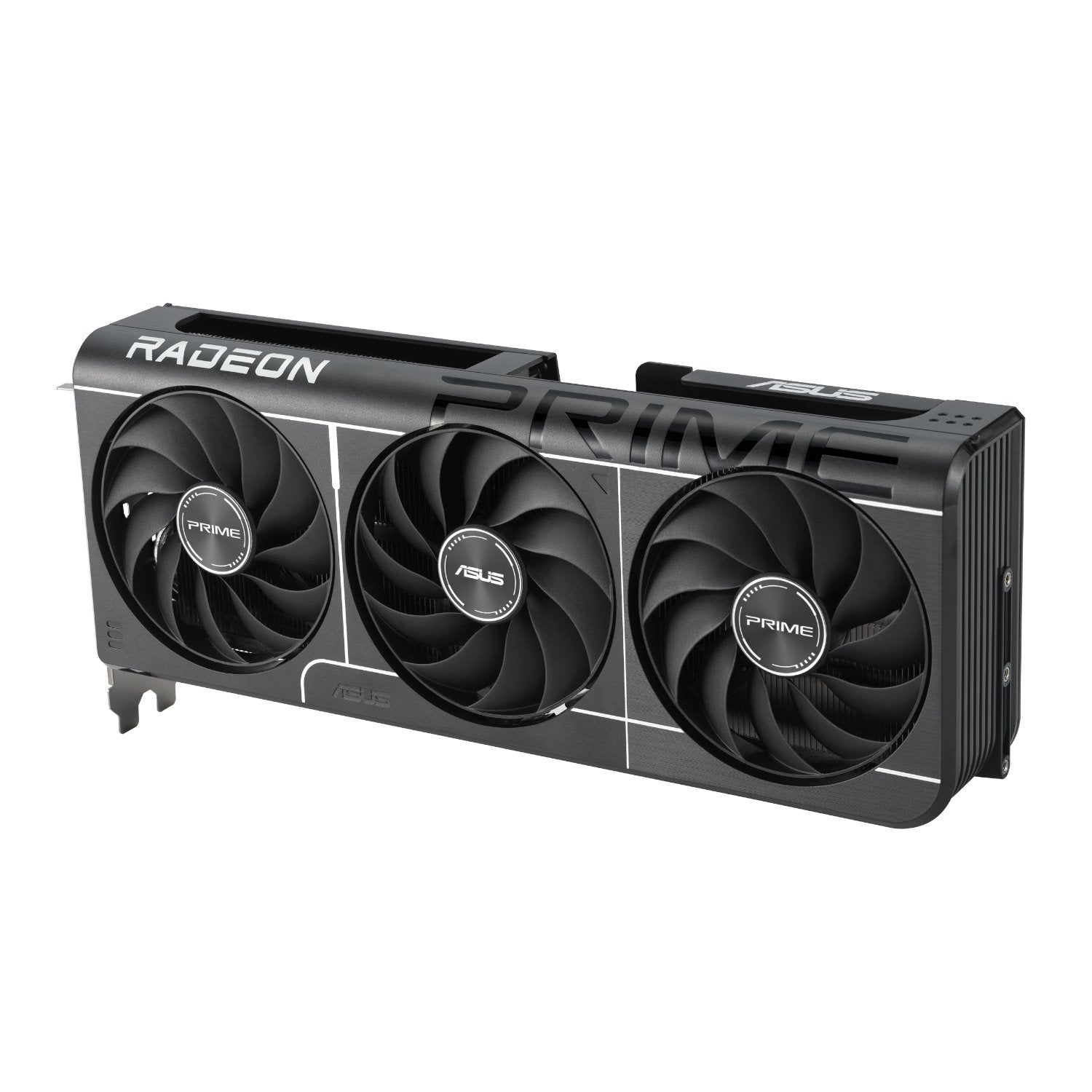

• Triple Axial-Tech fan design with 0dB tech for efficient, near-silent cooling under light loads


• Stainless steel mounting bracket (Grade 304) and reinforced backplate for structural rigidity and enhanced cooling performance


• Dual BIOS switch lets you toggle between performance mode and quiet mode on the fly


• ASUS Auto-Extreme manufacturing for ultra-precise, durable, and environmentally efficient PCB assembly


• Compact 2.5-slot form factor ensures broad chassis compatibility without sacrificing thermal headroom

SPECIFICATIONS

• Graphic Engine: AMD Radeon™ RX 9060 XT


• Bus Standard: PCI Express 5.0


• OpenGL: OpenGL®4.6


• Video Memory: 16GB GDDR6


• Engine Clock:



  • OC mode(GPU Tweak III): up to 3330 MHz (Boost Clock)


  • Default mode: up to 2760 MHz (Game Clock)






• Stream Processors: 2048


• Memory Speed: 20Gbps


• Memory Interface: 128-bit


• Resolution: Digital Max Resolution 7680 x 4320


• Interface:

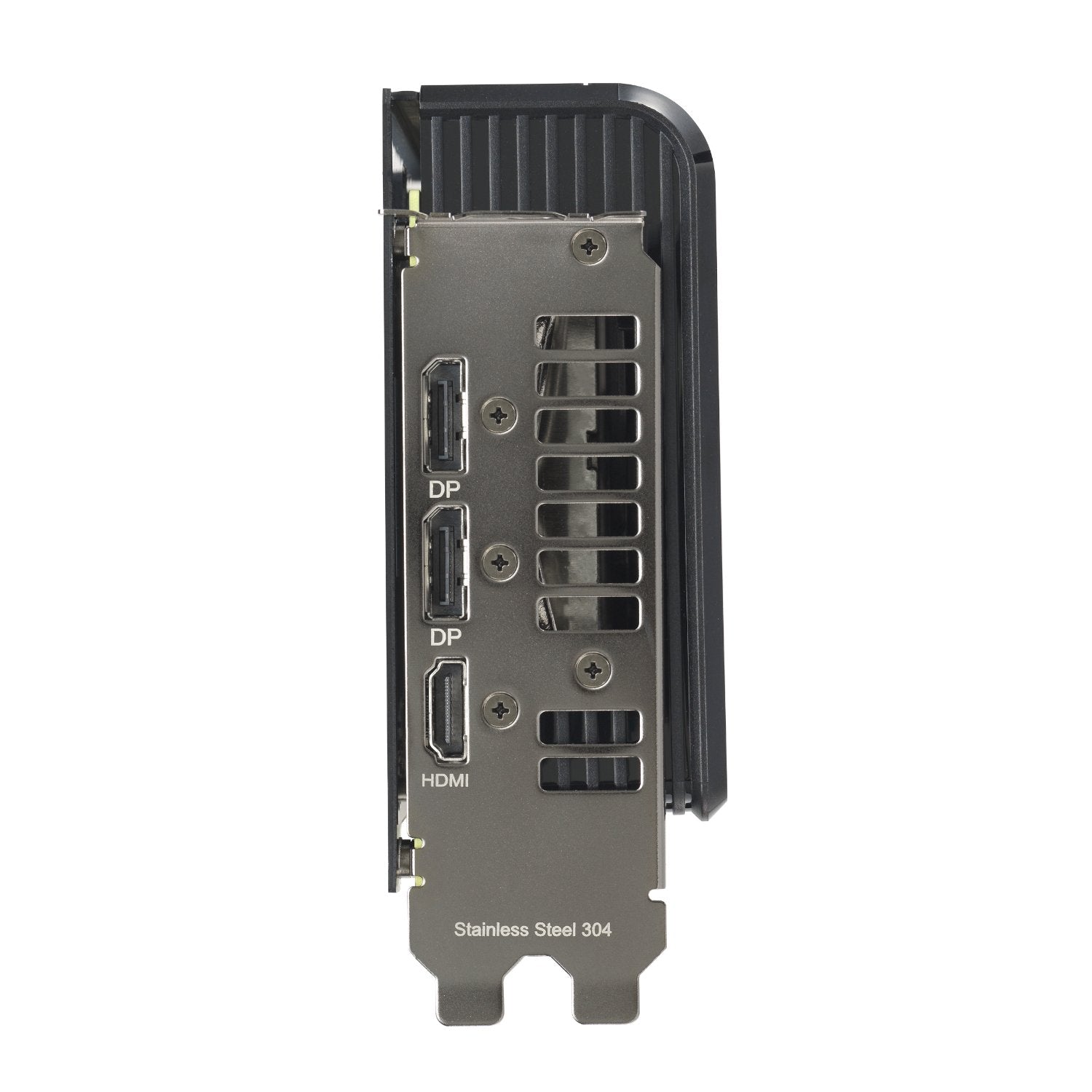

  • Yes x 1 (Native HDMI 2.1b)


  • Yes x 2 (Native DisplayPort 2.1a)


  • HDCP Support Yes (2.3)






• Maximum Display Support: 3


• NVlink/ Crossfire Support: No


• Software: ASUS GPU Tweak III & Drivers: please download all software from the support site.


• Recommended PSU: 550W


• Power Connectors: 1 x 8-pin


• Slot: 2.5 Slot


• Colour: Black


• Product Dimensions: 30.4 x 12.6 x 5 cm

WHAT'S IN THE BOX

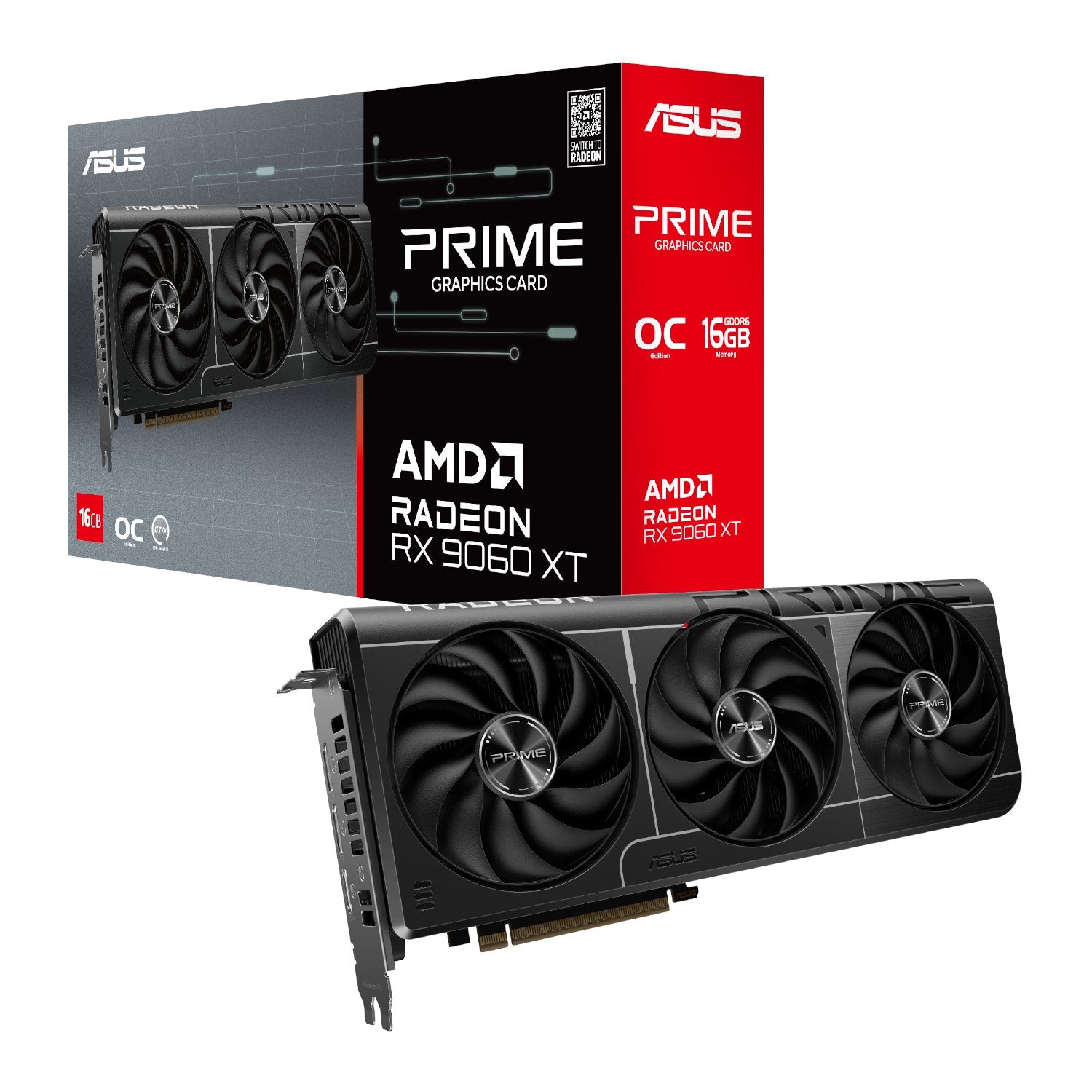

• ASUS Prime Radeon RX 9060 XT OC 16GB GDDR6 Graphics Card - Black x1


• Thank you card x1


• Speedsetup Manual x1
