Availability: In Stock

R 5,999.00

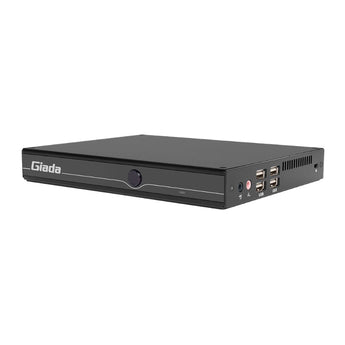

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual...

\

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.


FEATURES:



  • Intel® Processor N100

  • DDR4 3200MHz memory support

  • Intel UHD onboard graphics

  • Up to 4k resolution support

  • 1x DP and 2x HDMI output

  • Support for Wi-Fi/Bluetooth module

  • Small form factor design


SPECIFICATION:



  • CPU: Intel® Processor N100 (Fanless)

  • Turbo Frequency: 3.40GHz

  • Chipset: SoC

  • Processing Units: 4 Cores

  • TDP: 6W

  • System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz

  • Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD

  • Watchdog Timer: Yes

  • Auto Power On: Yes

  • RTC: Set up independently every day, a week as a cycle

  • Remo on: No

  • Power Requirement: DC-IN, 19 V/2.37 A

  • Construction: Metal

  • Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)

  • Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow

  • Certifications: CE, FCC Class B, UKCA

  • Humidity: 95% @ 45°C (non-condensing

  • Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet

  • Ethernet Interface: 2 x RJ45

  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6

  • Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot

  • GPU: Intel® UHD Graphics

  • Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0

  • Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)

  • USB: 2 x USB3.2 Gen2, 4 x USB2.0

  • Serial Port: 2 x RS232

  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT

  • Button: 1 x Power on, 1 x CLR-CMOS

  • Antenna: 2 x Connector for Wi-Fi/BT

  • Product Dimensions: 18.9 x 14.8 x 2.6 cm


WHAT'S IN THE BOX:



  • Giada F108D Alder Lake-N Book Size Signage Player - Black x1

×
