Availability: In Stock

R 1,519.00

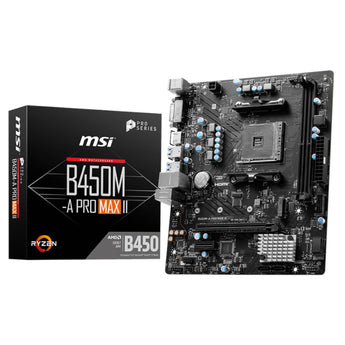

The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up and application and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32Gb/s per device using Gen3 x4!Core Boost is the most recent upgrade to MSI's motherboard CPU...

\

The MSI B450M-A Pro Max II motherboard provides lightning-fast system boot-up and application and game loading. Turbo M.2 is more than 5 times faster than a regular SATA III connection, with speeds up to 32Gb/s per device using Gen3 x4!


Core Boost is the most recent upgrade to MSI's motherboard CPU power delivery system. A reserved zone of premium power delivery components on an optimised circuit design results in a highly efficient power system that can output precise current to the CPU.


Reward your ears with studio-quality sound. MSI Audio Boost produces the best sound possible by utilising high-quality audio components. This allows you to enjoy stunning, studio-quality sound for the most immersive audio experience.


For clever business solutions, PRO Series motherboards combine stable functionality and high-quality assembly. PRO Series motherboards are designed to meet any professional workflow, making life easier for businesses and office use.


FEATURES:



  • Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4

  • Supports DDR4 Memory, up to 4133 (OC) MHz

  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

  • Audio Boost: Reward your ears with studio grade sound quality.

  • X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.


SPECIFICATIONS:



  • Socket: AM4

  • CPU Support:

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics

  • Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

  • Chipset: AMD B450

  • DDR4 Memory: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE), 1866/ 2133/ 2400/ 2667Mhz(by JEDEC)

  • Memory Channel: Dual-Channel DDR4

  • DIMM Slots: 2

  • Max Memory (GB): 64

  • PCI-E Gen: Gen3

  • PCI-E x16: 1

  • PCI-E x1: 1

  • SATA III: 4

  • M.2 Slot: 1

  • TPM (Header): 1

  • USB 3.2 Ports (Front): 2(Gen1, Type A)

  • USB 3.2 Ports (Rear): 4(Gen1, Type A)

  • USB 2.0 Ports (Front): 4

  • USB 2.0 Ports (Rear): 2

  • Serial Ports(Front): 1

  • LAN port (Rear): Realtek® 8125 2.5Gigabit LAN controller

  • Audio ports (Rear): Realtek® ALC897 Codec

  • DVI-D: 1

  • HDMI: 1

  • DirectX: 12

  • Form Factor: m-ATX

  • Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit


WHAT’S IN THE BOX:



  • MSI B450M-A PRO MAX II AMD AM4 mATX Gaming Motherboard – Black x1

  • Driver DVD x1

  • I/O Shield x1

  • SATA Cable x2

  • Quick Install Guide x1

×
