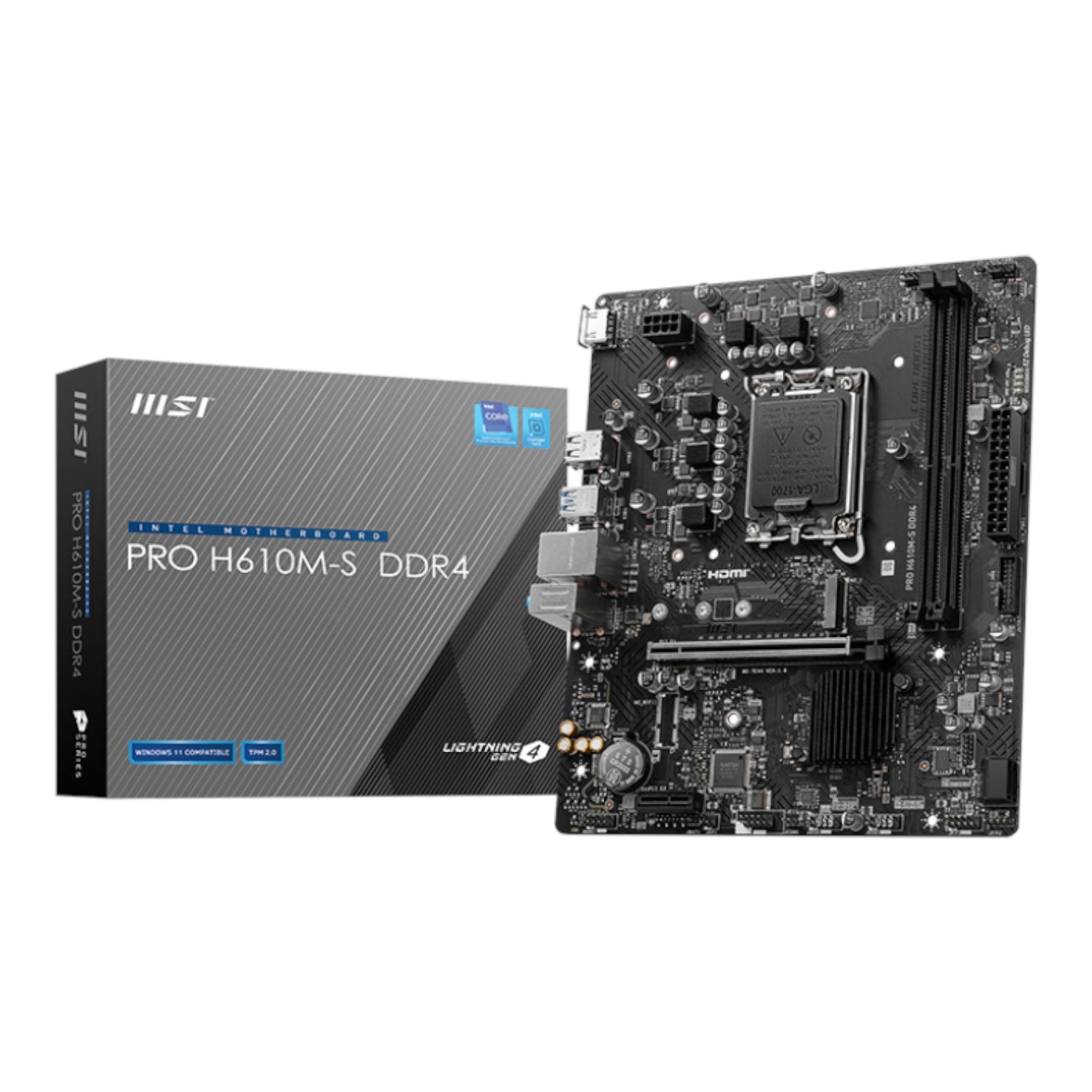

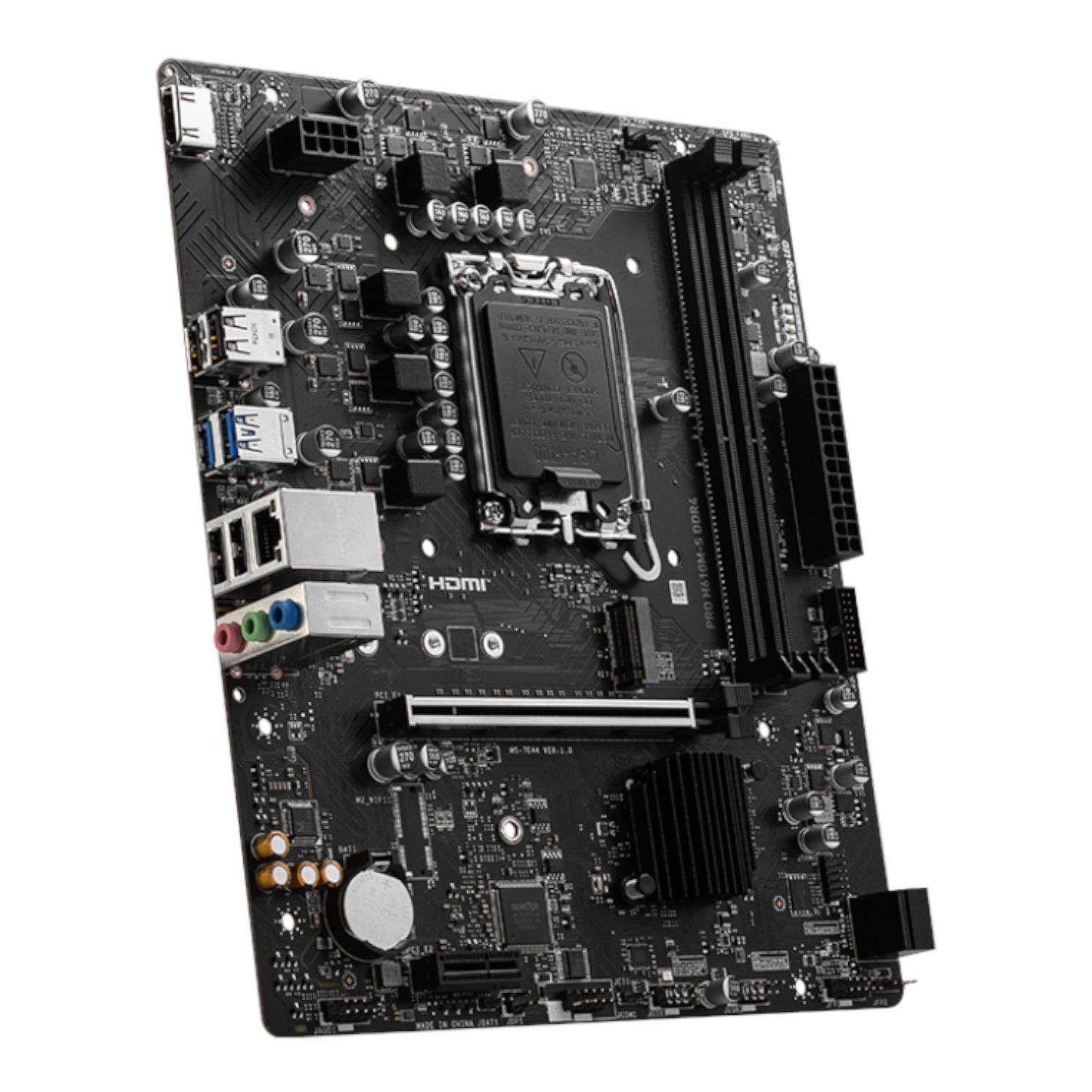

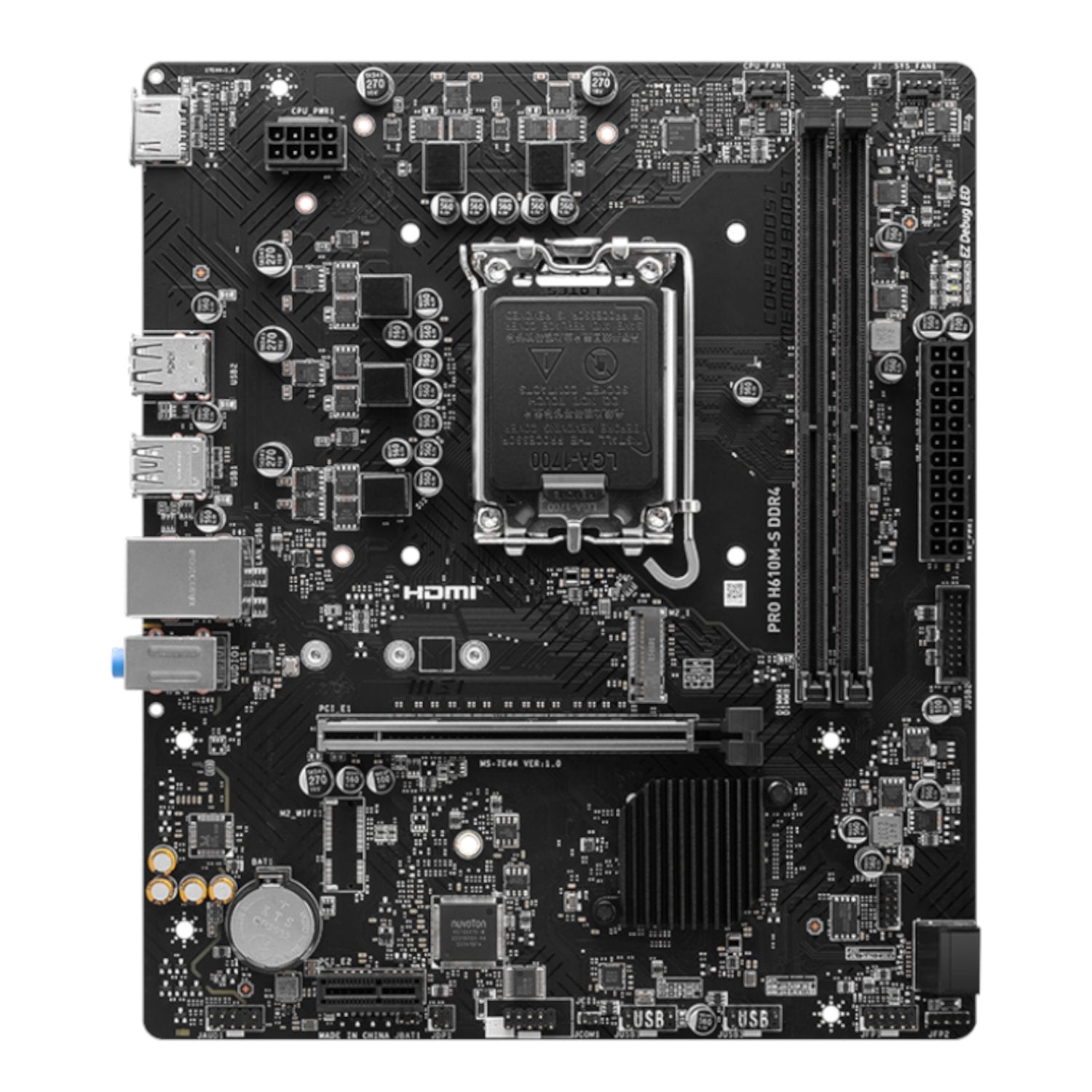

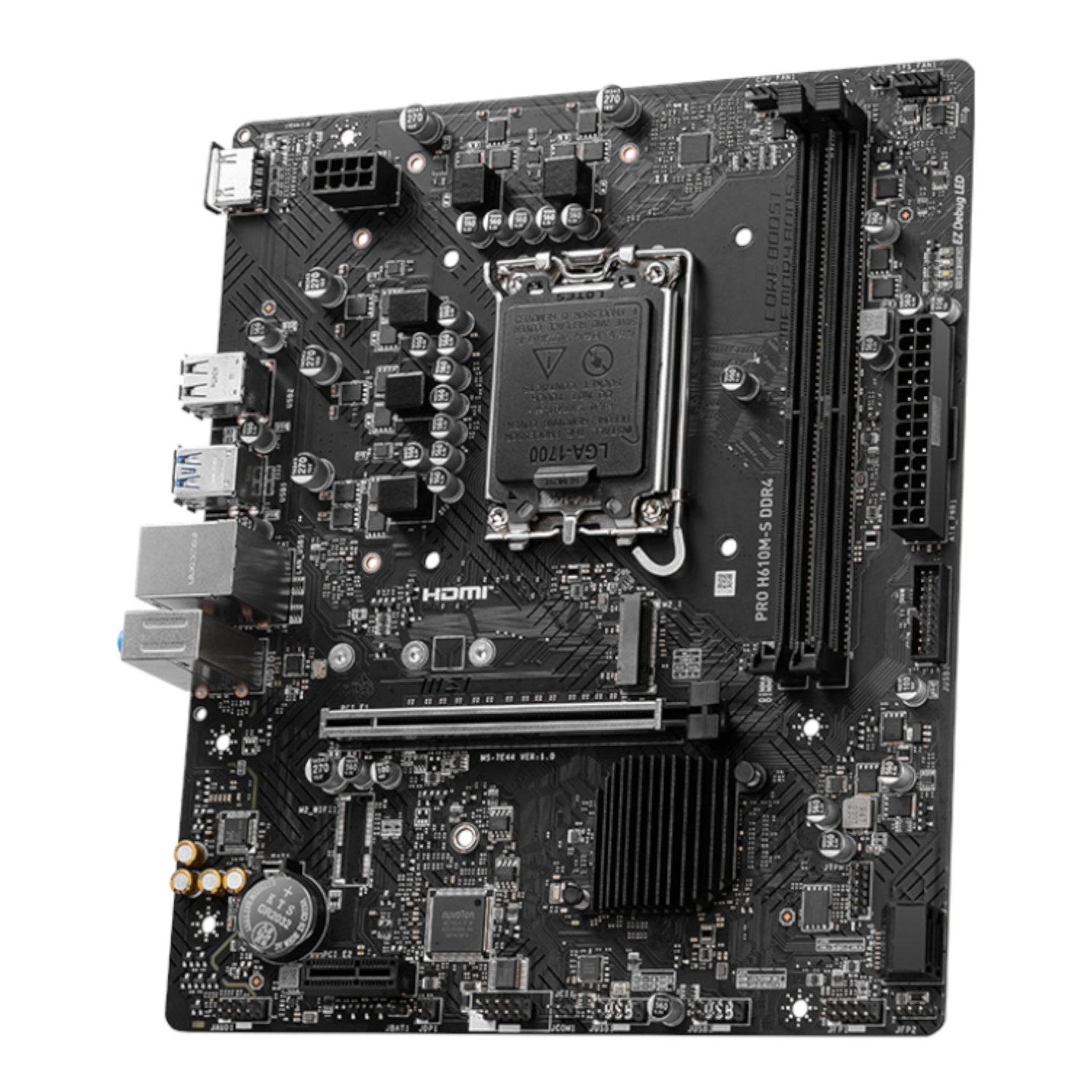

Msi H610 M S Pro Lga1700 M Atx Ddr4 Motherboard

Built for stability, efficiency, and seamless professional productivity, the MSI H610M-S PRO LGA1700 Motherboard is the foundation of your next high-performance desktop build. Designed to support Intel® 14th, 13th, and 12th Gen Core™, Pentium® Gold, and Celeron® processors, this micro-ATX motherboard balances powerful features with everyday reliability, making it the ideal choice for system builders, office environments, and content creators alike.

Equipped with DDR4 dual-channel memory support up to 3200MHz, the H610M-S PRO ensures smooth multitasking and application performance. MSI’s Memory Boost and Core Boost technologies deliver enhanced signal integrity and optimized power delivery, giving your system the extra edge in stability and speed. The PCIe 4.0 x16 slot allows users to harness the latest GPU performance, while the M.2 Gen3 x4 slot and two SATA 6Gbps ports support ultra-fast storage solutions—ideal for reducing load times and boosting data transfer.

MSI’s hallmark design features make DIY installation straightforward and frustration-free. The inclusion of Steel Armor reinforcement on the PCIe x16 slot offers extra durability for graphics cards, while EZ Debug LEDs help simplify diagnostics by identifying potential hardware issues during boot. Fan management is made easy with Total Fan Control, allowing you to configure up to four temperature targets to optimize cooling and acoustics.

Whether you're running a compact office workstation or a custom home build, the H610M-S PRO offers flexible I/O including four USB 2.0 ports, two USB 5Gbps Type-A ports on both the front and rear, HDMI™ 1.4 output for 4K@30Hz video, and Realtek® RTL8111H Gigabit LAN for reliable network performance. The Audio Boost system with 7.1-channel HD audio delivers immersive sound, ideal for both work and entertainment.

With its robust 8-channel audio, high-speed connectivity, and support for the latest Intel CPUs, the MSI H610M-S PRO is built to power through demanding tasks, extend component longevity, and ensure seamless daily productivity.

FEATURES:

• Support Intel^® Core™ 14th/ 13th/ 12th Gen Processors, Intel^® Pentium^® Gold and Celeron^® Processors for LGA 1700 socket


• Supports DDR4 Memory, up to 3200(MAX) MHz


• Core Boost : With premium layout and digital power design to support more cores and provide better performance


• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility


• Lightning Fast Experience: PCIe 4.0


• Audio Boost: Reward your ears with studio grade sound quality


• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

SPECIFICATIONS:

• CPU Support: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors


• CPU Socket: LGA 1700 socket


• Chipset Intel®: H610 Chipset


• Graphics Interface: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1 slot


• Display Interface: Support 4K@30Hz as specified in HDMI™ 1.4 – Requires Processor Graphics


• Memory Support: 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX)


• Storage: 1x M.2 Gen3 x4 32Gbps slot, 2x SATA 6Gbps ports


• Slot:



  • 1x PCI-E x16 slot


  • 1x PCI-E x1 slot


  • PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)


  • PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

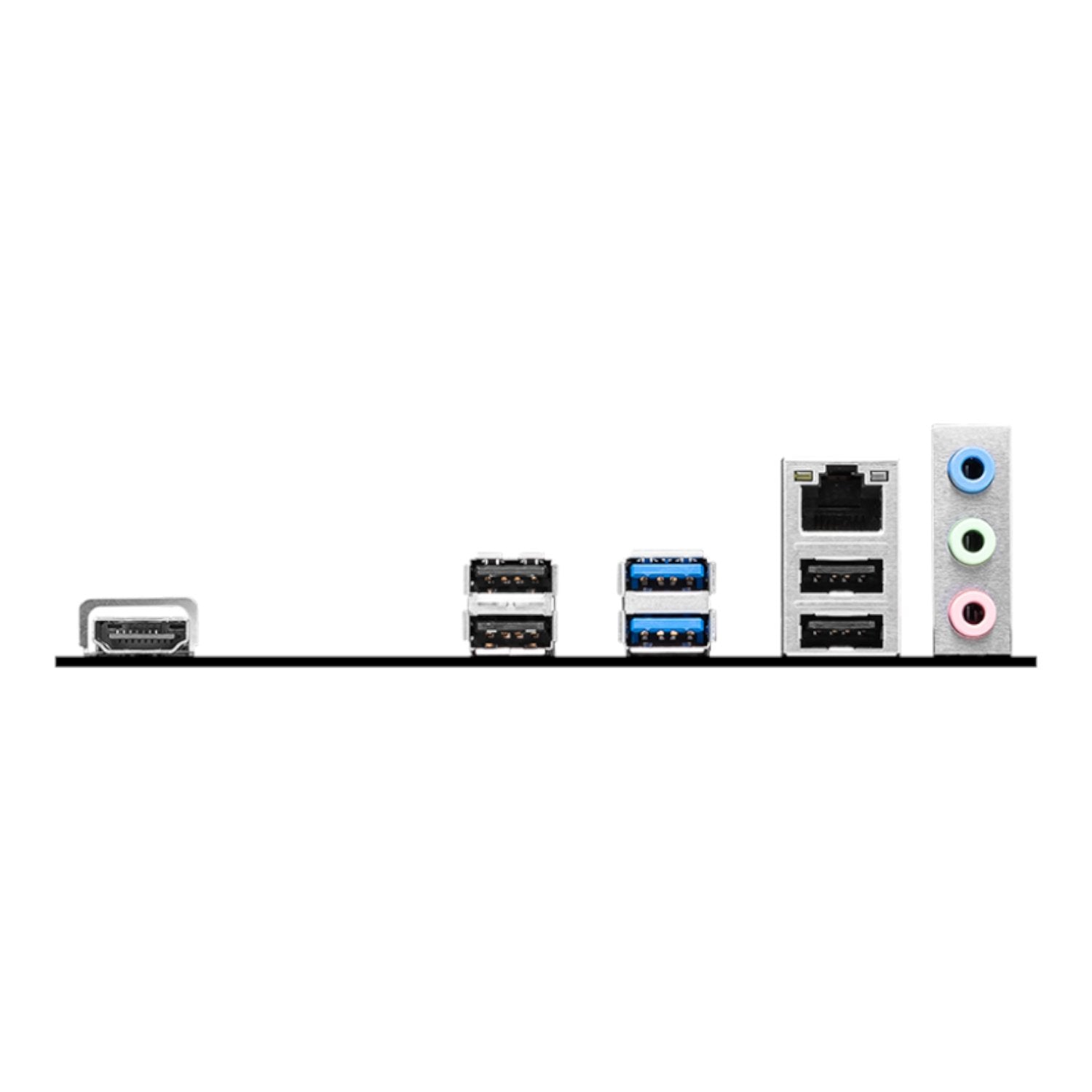

• USB Ports Front: 4x USB 2.0 | 2x USB 5Gbps Type A


• USB Ports Rear: 4x USB 2.0 | 2x USB 5Gbps Type A


• LAN Realtek®: RTL8111H Gigabit LAN


• Audio: 8-Channel (7.1) HD Audio with Audio Boost


• LED: 4x EZ Debug LED


• Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit


• Form Factor: mATX


• Product Dimensions: 20 x 23.61 cm

WHAT'S IN THE BOX:

• MSI H610M-S PRO LGA1700 M-ATX DDR4 Motherboard x1


• European Union Regulatory Notice x1


• Quick Installation Guide x1


• M.2 Screw/Standoff Set x1


• SATA Cable x1


• I/O Shield x1
